Split Tree Guards

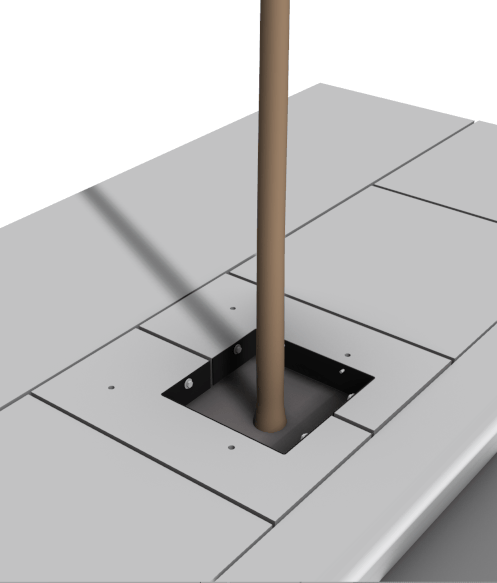

Designed to bolt into standard municipal 600 mm tree pit openings, our Split Tree Guards surround the tree in two parts to be lifted along with the precast covers and reinstalled without disassembly. Available in a range of heights to suit different site conditions, they fit efficiently into dense urban spaces.

600mm Split Solution 600LTF02-VERT Pattern

FEATURES

  • Allows tree removal without any disassembly

  • Protects tree trunk from damage and pedestrians from stepping into the pit

  • Edges softened by 45° bends helping to deflect snowplows

  • Low clean out access holes

MATERIALS

  • ¼” Corten steel laser cut, press formed

  • Natural weathering patina or paint finish

ORDERING INFORMATION

  • Customization available

  • Lead-time 6 weeks

  • Shipping, delivery & installation available

DIMENSIONS

  • Grate flush with ground

  • Low Edge 130mm tall (5”)

  • Low Fence between 400 and 500mm tall (15.75” to 19.7”)

  • Tall Fence up to 850mm tall (33.5”)

  • Hybrid design possible integrating a bench and/or bike stand

Contact us for more information

Design options

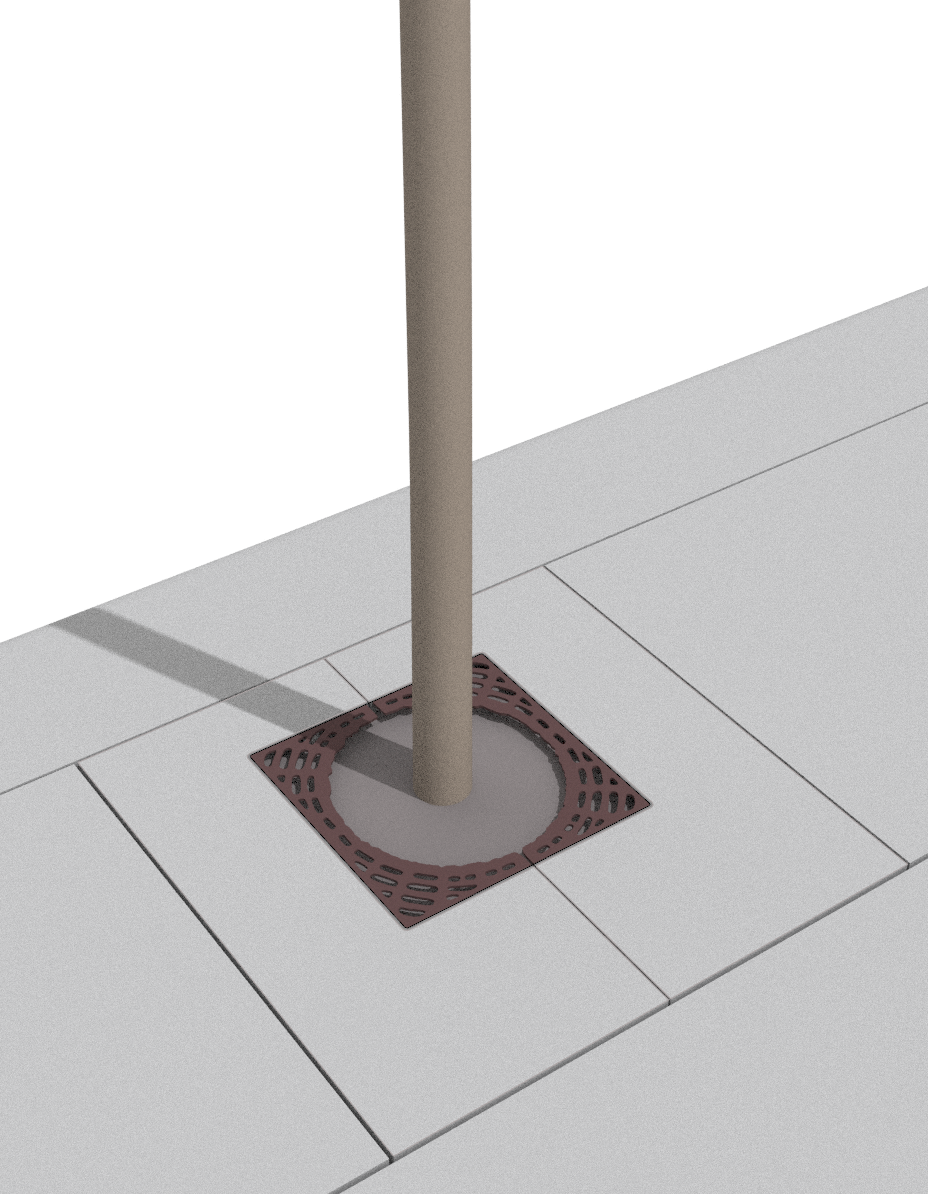

Grid 600G02-VERT

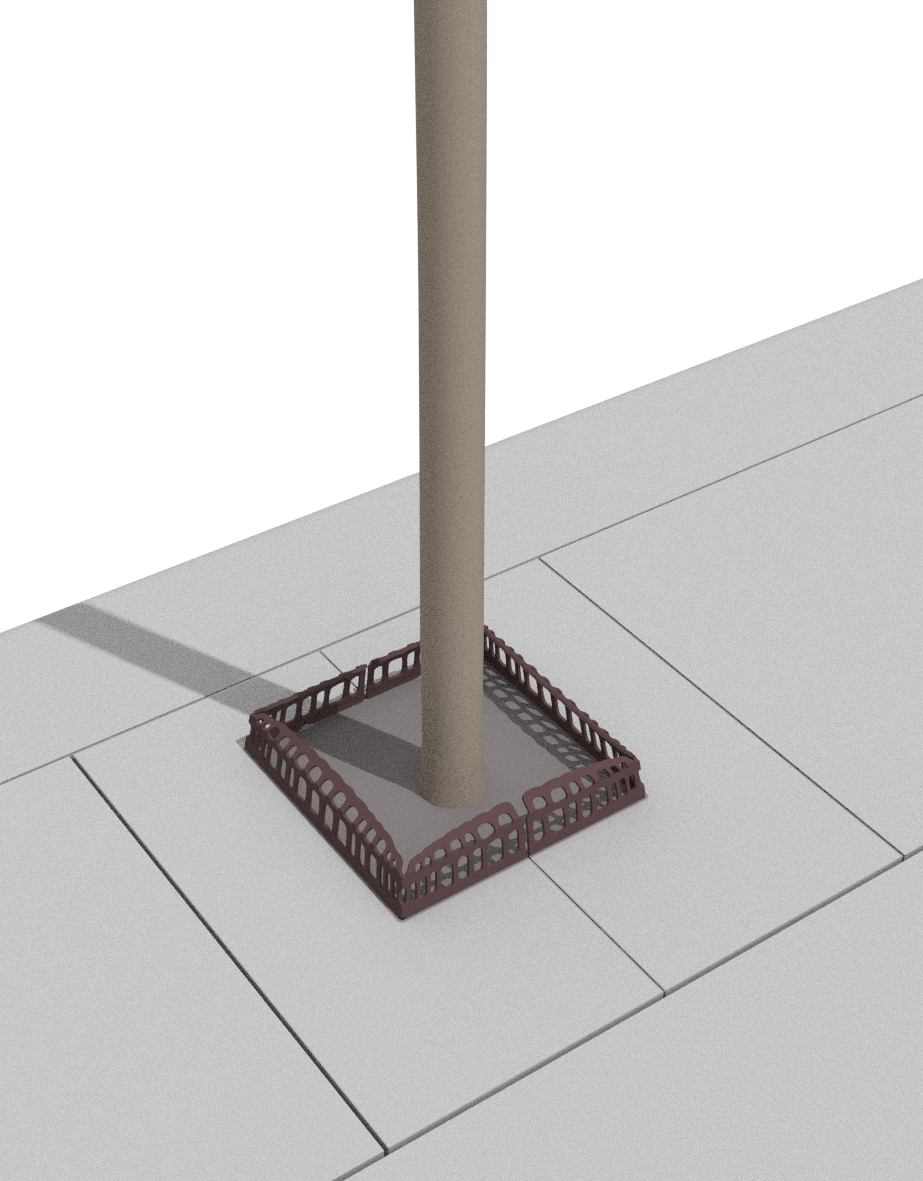

Low Edge 600LE02-VERT

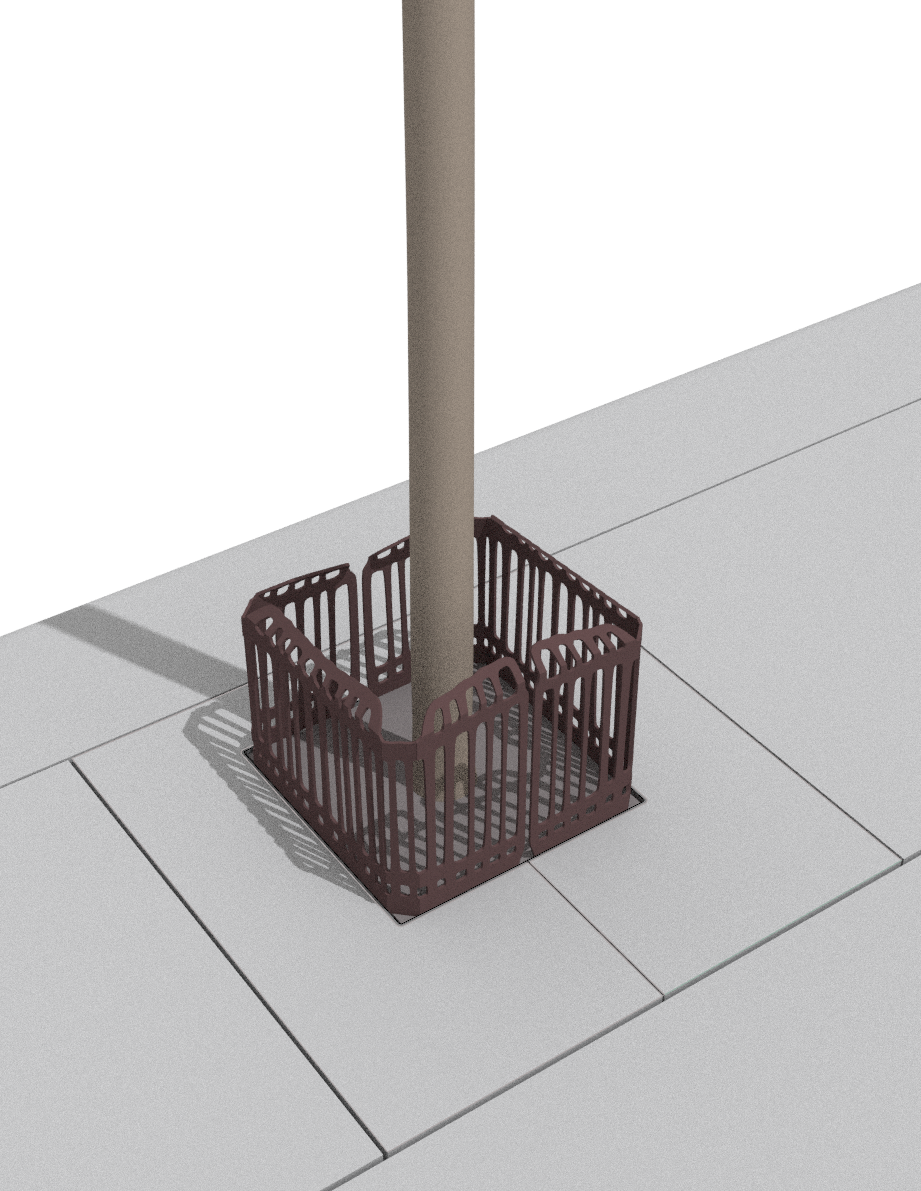

Low Fence 600LTF02-VERT

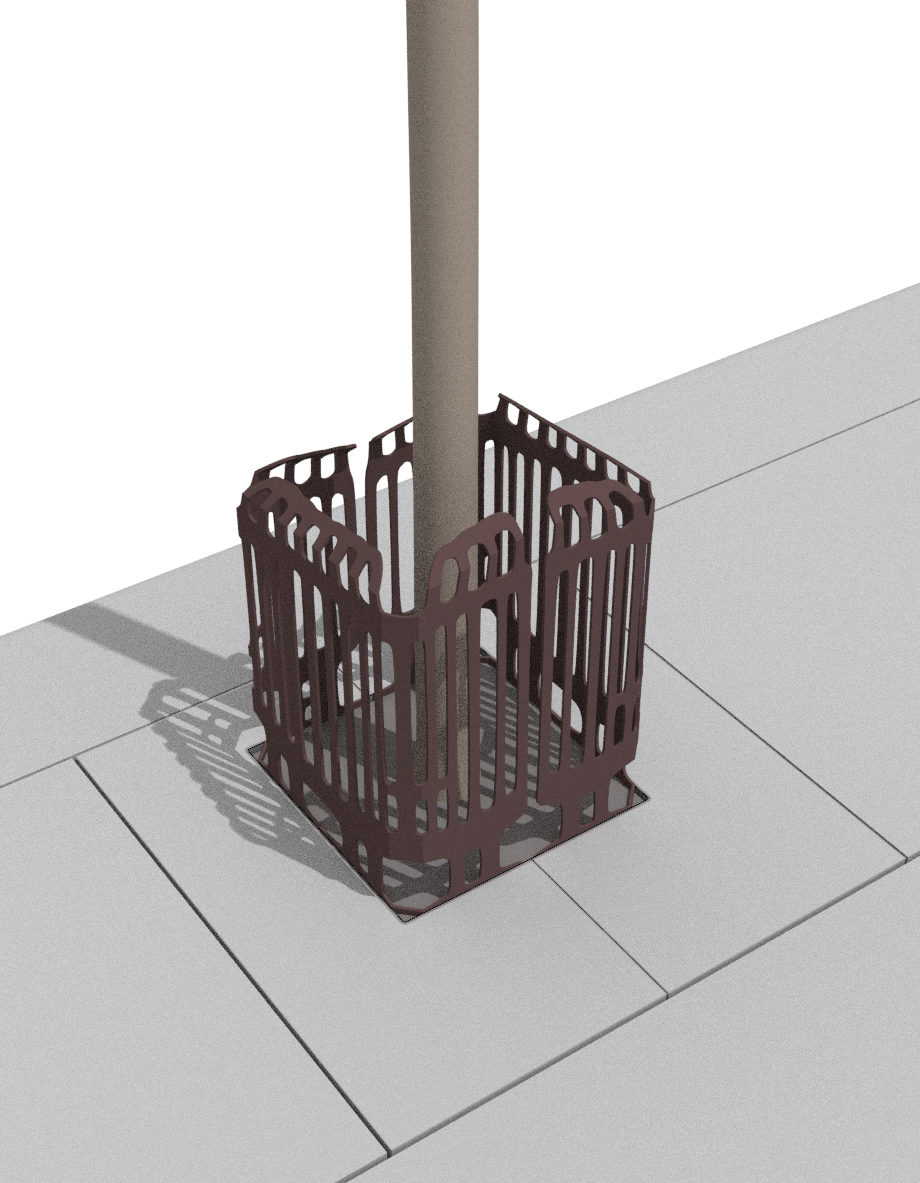

Tall Fence 600TTF02-VERT

Customization

While StreetPlants offers a core line of ready-made street furniture, we specialize in adapting and customizing designs to suit the unique needs of your project or site. Whether it’s a distinct pattern, a locally inspired graphic, a tailored size, or a new configuration, we work closely with clients—planners, architects, BIAs, and municipalities—to develop solutions that enhance both function and sense of place.

Our design process is fast, flexible, and collaborative. Using digital modeling, CNC prototyping, and real-world mockups, we refine ideas quickly and clearly—ensuring alignment with your goals and seamless integration into the built environment.

Tall Fence 600TTF02-VERT with Bench on each side
